Command Buttons and Options

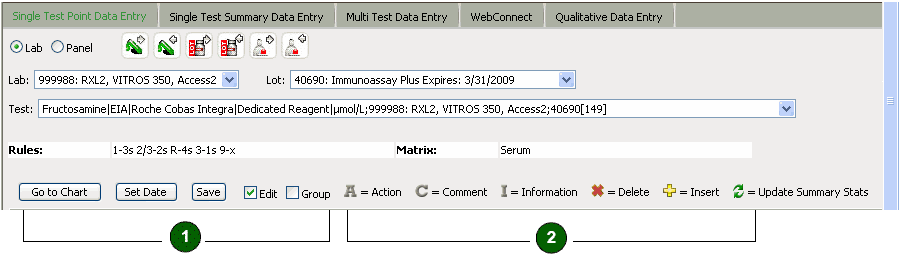

Command buttons and options

• Go to Chart

  Click Go to Chart to view a Levey-Jennings Chart for the test (Single Test Point Data Entry dialog box only). See View a Levey-Jennings Chart for more information.

• Set Date

  Click Set Date to use the Set Date feature. See Use the Set Date Feature for more information.

• Save

  Click Save to save data.

• Edit check box

  Select the Edit check box to enter or edit data (Single Test Point Data Entry dialog box only).

• Group check box

  Select the Group check box to view the Summary Statistics based on the Group and cumulative statistics. See Data Groups for more information about data groups.

  Clear the Group check box to view the Summary Statistics based on monthly and cumulative statistics. See Summary Statistics for more information.

Edit Data Key

Each data entry row provides the ability to edit data as follows:

• Click to add an action to the row of data or to view any existing actions. A green arrow appears in the column when an action has been added . Actions are only available for point data.
• Click to add a comment to the row of data or to view any existing comments. A green arrow appears in the column when a comment has been added .
• Click or the Information link to view extended information about the test:

  Floating mean/SD

  (the evaluation mean and/or SD used to evaluate the row of data if floating statistics are used)

  Fixed mean/SD

  (the evaluation mean and/or SD used to evaluate the row of data if fixed statistics are used)

  Rules

  (the SPC rules used to evaluate the row of data)

  Bench Review

  (the person who reviewed the row of data, if applicable, in Bench Review)

  Supervisor Review

  (the person who reviewed the row of data, if applicable, in Supervisor Review)

• Click or the Delete link to delete a row of data.
• Click or the Insert link to insert a row of data.
• Click or the Update link to update the Summary Statistics.
