2 of 3-2s

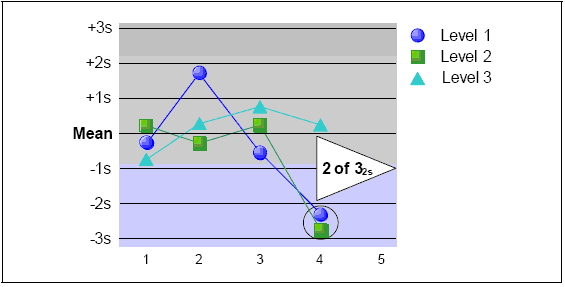

This is a variation of the 2-2s rule and detects systematic errors. It is triggered when any two of all three levels of control in a run exceed 2SD on the same side of the mean. The following figure shows a Levey-Jennings Chart with two points violating the 2 of 3-2s rule.

2 of 3-2s
